SNMP Trap Action

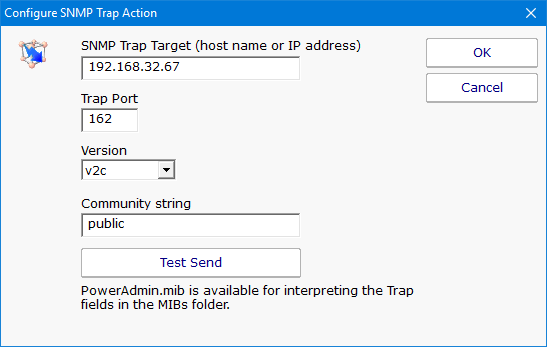

The SNMP Trap action will take values, descriptions, etc from a monitor and fire them off as an SNMP Trap. You can configure the action to send the Trap to any server/device on the network, using any port (port 162 is the default SNMP Trap port).

Traps will have the following fields:

alertSummary	A human readable summary of the alert condition.
computerName	Source Computer Name
monitorName	Source monitor name.
monitorStatus	Monitor status.
monitorMessage	A custom message from the monitor. This field is often empty.
alertTimestamp	A string representing the time of the error in YYYYMMDDHHMMSS format. This is in the local time of the reporting agent.
monitorType	Source monitor type.
monitorStatusID	Monitor status ID.
computerID	*Source computer ID within the Power Admin monitoring product.
monitorID	*Source monitor ID.
monitorTypeID	Source monitor type ID.
monitorIDasOID	*Source monitor ID as an OID
computerIDasOID	*Source computer ID as an OID

A MIB file exists in the C:\Program Files\PA Server Monitor\MIBs folder which describes the format of the Traps that will be sent.

You can download that same MIB file here.
